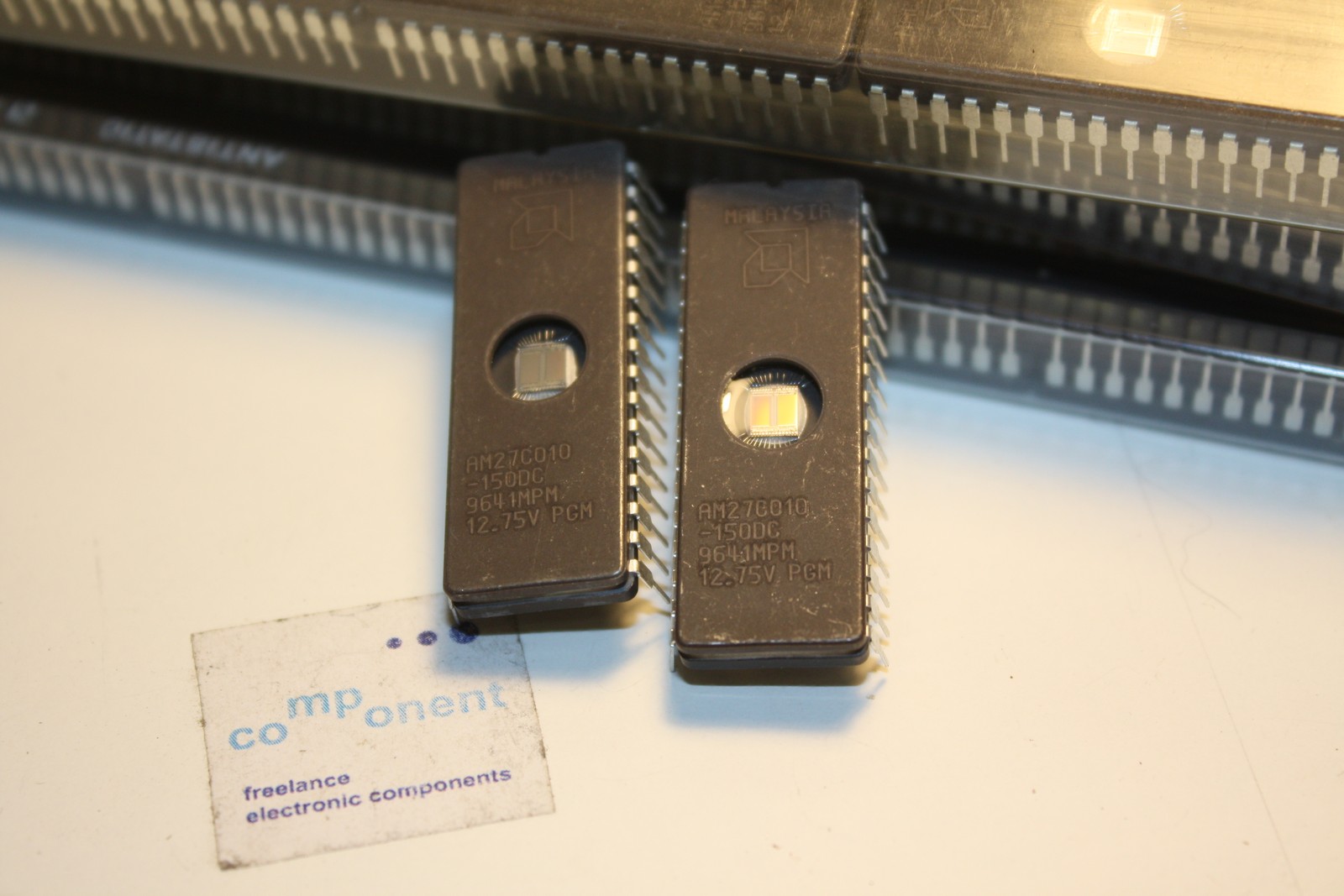

EPROM 27C010 AMD AM27C010-150DC 128Kx8 Bit 1M UV EEPROM -1Pcs(D3-A7)

6,15

EPROM 27C010 AMD AM27C010-150DC 128Kx8 Bit 1M UV EEPROM

Disponibilità: 1191 disponibili

COD: 27C010 Categoria:

AM27C010-150DC AMD 128Kx8-Bit 1M Uv-Cancellabile Eprom

Am27C040
4 Megabit (512 K x 8-Bit) CMOS EPROM

The a 1 Megabit, ultraviolet erasable programmable read-only memory.
It is organized as 128K words by 8 bits per word, operates from a single +5 V supply,
has a static standby mode, and features fast single address location programming.
Products are available in windowed ceramic DIP packages, as well as plastic one time
programmable (OTP) PDIP and PLCC packages. Data can be typically accessed in less than 45 ns,
allowing high-performance microprocessors to operate without any WAIT states.
The device offers separate Output Enable (OE#) and Chip Enable (CE#) controls,
thus eliminating bus contention in a multiple bus microprocessor system. AMD’s
CMOS process technology provides high speed, low power, and high noise immunity.
Typical power consumption is only mW in active mode, and µW in standby mode.
All signals are TTL levels, including programming signals. Bit locations may be programmed singly,
in blocks, or at random. The device supports AMD’s Flashrite programming algorithm (100 µs pulses),
resulting in a typical programming time of 16 seconds.


DISTINCTIVE CHARACTERISTICS
■ Fast access time
— Available in speed options as fast as 90 ns
■ Low power consumption
— <10 µA typical CMOS standby current
■ JEDEC-approved pinout
— Plug-in upgrade for 1 Mbit and 2 Mbit EPROMs
— Easy upgrade from 28-pin JEDEC EPROMs
■ Single +5 V power supply
■ ±10% power supply tolerance standard
■ 100% Flashrite™ programming
— Typical programming time of 1 minute
■ Latch-up protected to 100 mA from –1 V to
VCC + 1 V
■ High noise immunity
■ Compact 32-pin DIP, PDIP, PLCC packages


E’ in vendita quello che si vede in foto

Nessuna garanzia di funzionamento fondo di magazzino materiale surplus

ISCRIVITI SUL SITO E SARAI INFORMATO VIA e-mail DI TUTTE LE NUOVE USCITE SETTIMANALI/MENSILI

ATTENZIONE LEGGERE BENE TUTTO PRIMA DI FARE UN ACQUISTO

E’ possibile effettuare un’unica spedizione anche in caso di acquisti multipli, purchè i medesimi vengano FATTI nell’ambito di 2 GIONI.
LE SPEDIZIONE CUMULATIVE EFFETTUATE CON OGGETTI ACQUISTATI NEI 2 GIORNI AVRANNO IL COSTO DI UNA SOLA SPEDIZIONE, QUELLA DAL COSTO PIU’ ALTO.
Valido solo per spedizioni in Italia
Valido solo per l’Italia
NON FACCIAMO DEROGHE A QUESTA REGOLA.

Spedisco con Poste Italiane Economico Tracciato
Se specificato posso spedire con Corriere ma verrà richiesto una differenza del prezzo che sarà per mezzo di pagamento in PayPal
Non è possibile la consegna a mano nessuna eccezione.

Peso 0,00 kg
